The Difference between PBT And PET Plastic

PBT and PET plastics are different in their molecular structure and main features.

• PBT has four methylene groups. This makes its chain more flexible. It also lets PBT crystallize faster.

• PET has two methylene groups. This makes PET more stiff. PET also has a higher glass transition temperature, close to 165°C.

• PET is usually stronger and stiffer. PBT is better at handling impacts. PBT also has shorter injection molding times.

These differences change how each plastic works in real life. PBT resists chemicals well and keeps its shape. This makes it good for car parts that face oil and heat. PET is stronger, clearer, and handles heat better. This helps PET work well in packaging and reinforced items.

Key Takeaways

• PBT has a long, bendy chain. This makes it strong and easy to shape. It works well for car parts and electrical connectors. PET has a short, stiff chain. This gives it strength and makes it clear. It also helps it resist heat. PET is good for packaging and bottles. PBT stands up to chemicals and hits better. PET can take more heat and stays strong for a long time. Use PBT for parts that must bend and resist oil. It is also good when you need to make things quickly. Use PET for items that must be clear and strong. PET is best when things need to handle heat. Think about strength, heat, chemical resistance, and cost. This will help you choose between PBT and PET for your project.

Chemical Structure

PBT Structure

Polybutylene terephthalate, called PBT, is made when 1,4-butanediol reacts with terephthalic acid. This reaction makes a polyester polymer. Each repeating part of the chain has four methylene (CH₂) groups. These groups come from butanediol. The way PBT is built gives it a flexible backbone. The polymerization uses step-growth methods, which are usual in making polyester. Ester linkages join the terephthalic acid and butanediol together. This setup changes how PBT acts when processed and as a finished product.

PET Structure

Polyethylene terephthalate, or PET, is made by mixing terephthalic acid with ethylene glycol. Sometimes, dimethyl terephthalate is used instead of terephthalic acid. The reaction creates a polyester chain with two methylene (CH₂) groups in each repeating part. These groups come from ethylene glycol. PET’s structure makes its polymer chain more rigid. Ester bonds connect the terephthalic acid and ethylene glycol units. This structure gives PET strength and clarity, which helps in many uses.

Backbone Differences

The biggest difference between PBT and PET is the length of the alkyl chain in their glycol parts.

• PBT uses butanediol, which has four carbon atoms. This longer chain makes the backbone more flexible.

• PET uses ethylene glycol, which has two carbon atoms. This shorter chain makes the backbone stiffer.

• The chain length changes crystallinity, melting point, and flexibility.

• PBT crystallizes faster and is easier to process.

• PET is more rigid and strong.

These differences in structure show why PBT and PET work differently in real life.

PBT vs PET Properties

Physical

Physical properties show how a material acts when used. They tell us how strong, stiff, or tough something is. PBT and PET are not the same in these ways. The table below shows how strong and tough they are:

PBT and PET are close in strength. But PBT is better at handling hits. This makes PBT good for things that need to bend or take a hit. PET is stiffer and stronger. It works well for things that must keep their shape.

When we test how stiff and bendy they are, we see:

Note: PBT bends and takes hits well. This helps when parts get used a lot. PET is better for things that must stay hard and strong.

Thermal

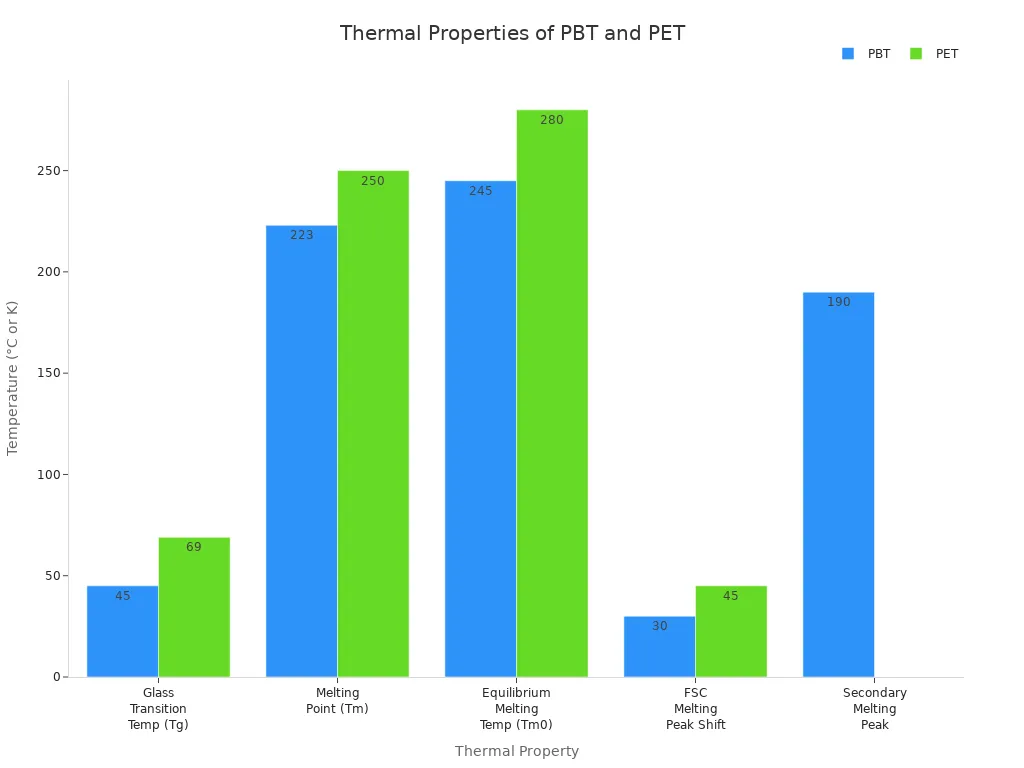

Thermal properties tell us how plastics act with heat. Glass transition temperature and melting point are important. The table below shows the numbers:

PET can take more heat before it gets soft or melts. PBT melts at a lower temperature. This means PBT is faster and easier to shape. PET needs to cool slowly to get strong and clear.

Tip: Pick PET if you need it to handle more heat. Pick PBT if you want fast making and good shape.

Chemical

Chemical resistance shows how plastics stand up to harsh stuff. PBT and PET do not react the same way to all chemicals. How well they work depends on what they touch, how strong it is, and how long it lasts. Some charts show PBT is better with some chemicals. PET is better with others. Neither one is perfect for every case. You must check what you need.

PBT does not crack easily, even with strong chemicals. Tests show PBT keeps most of its strength after being in harsh chemicals. This makes PBT good for car parts and medical tools. PET is strong but does not last as long in tough chemical places.

New ideas have made both plastics better:

• Bio-based and biodegradable PET and PBT help the planet.

• Better recycling makes them easier to reuse.

• New mixes make them stronger and better with heat and chemicals.

• Car makers use PBT to make cars lighter and save gas.

• Electronics use special PBT and PET for heat and electric safety.

Note: Always look at chemical charts and think about what the plastic will touch before you pick PBT or PET.

Comparison Table

Key Differences

The table below shows how PBT and PET plastics are not the same. It lists their structure, strength, heat handling, and chemical resistance.

Tip: Pick PET for strong, clear things that need heat resistance. Choose PBT for parts that bend, resist chemicals, and are made fast.

The main difference is in the chain part. PET has ethylene, and PBT has butylene. This changes how each plastic acts. PBT has a longer chain. It melts at a lower temperature and hardens faster. This makes PBT easier to shape and good for flexible things. PET has a shorter chain. It is stiffer and stronger. This helps PET work well in packaging and strong parts. Each plastic breaks down with heat in its own way. This affects how they handle high temperatures and how they are made.

PBT fibers stretch and bounce back better. PET fibers stay stiff and strong. Both need special additives to protect from sunlight. Their chemical resistance depends on their structure. PBT handles oils and solvents better. PET needs extra care to avoid damage from water and sun.

This table helps people pick the right plastic. Each feature changes how the plastic works in real life.

Applications

PBT Uses

PBT is strong and handles heat well. Car makers use PBT in many parts. Engineers pick it for connectors and switches. It goes in under-the-hood parts and sensor covers. PBT is also found in handles, fans, and mirror covers. Fuse boxes often use PBT too. Because it is light, cars use less gas and work better. In electronics, PBT helps insulate wires and switches. It keeps important parts safe from heat and electricity. Companies like that PBT keeps its shape and fights chemicals. This makes it great for tough jobs.

PET Uses

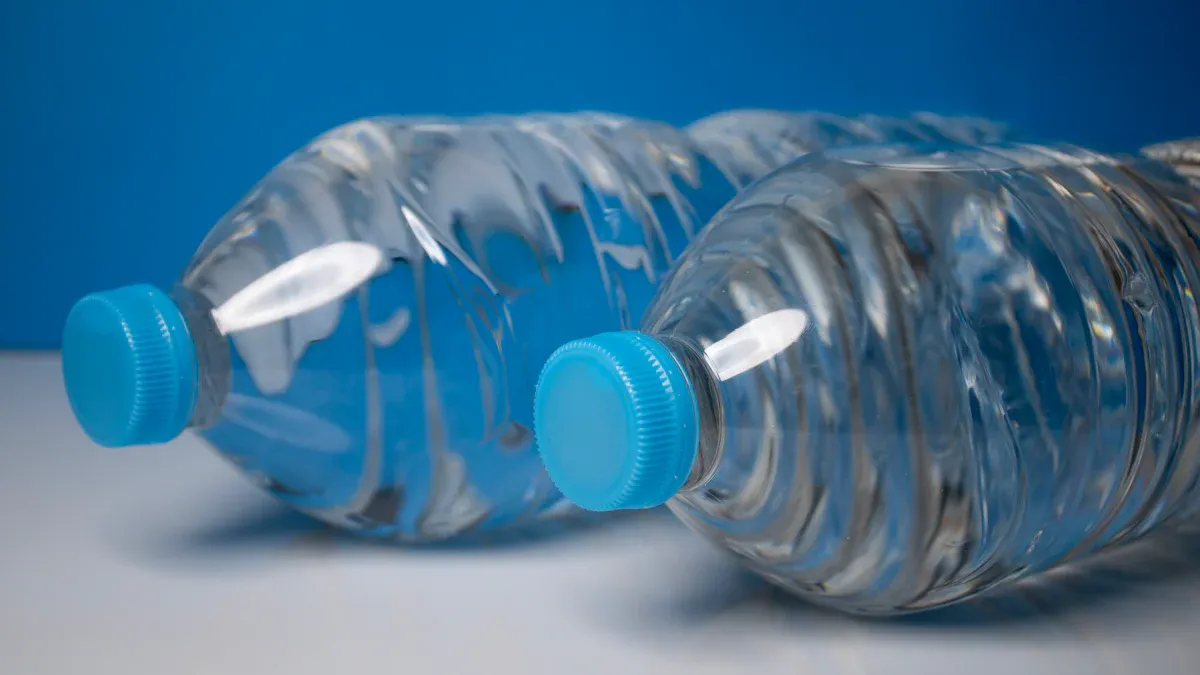

PET is popular for packaging. Companies make bottles and containers with PET. It is used for drinks and food. PET is clear and strong, so products stay safe and easy to see. PET films wrap food, drinks, and medicine. These films block water and air well. Bottles make up most of the PET market. Makers choose PET because it is safe and lasts long. PET is easy to recycle. It is light, so shipping costs less and helps the planet. In Asia-Pacific, more packaging, cars, and electronics need PET.

Preference by Industry

Rules for the environment make companies use recyclable plastics like PET and PBT. These rules help industries create better recycling. People want products that are good for the planet. Makers in China, India, and Southeast Asia use these plastics for packaging, cars, and electronics.

Pros and Cons

PBT Advantages

• Engineers like PBT because it is strong and tough. It works well for parts that need to last a long time. PBT can handle hits and stress, so it is good for heavy jobs. It is great at stopping electricity from passing through. This makes it safe for electrical connectors and switches. PBT does not get damaged by many chemicals, like oils and greases. This helps it work in cars and factories. PBT cools and hardens fast at lower heat. This means it can be made quickly and saves energy. PBT does not break down easily in heat or sunlight. It lasts longer in tough places.

  PBT comes in many types, like flame-retardant and reinforced grades. This helps makers use it for many different things.

PBT Disadvantages

• PBT is not as strong or tough as PET. PET parts last longer when used a lot. PBT melts at a lower temperature. This means it cannot be used where it gets very hot. When it gets too hot, PBT can change shape and not stay the same size. If PBT is not made carefully, it can break down. PET gets stronger and resists chemicals better after it hardens. This makes PET better for some hard jobs.

PET Advantages

• PET packaging is cheap, light, and strong. It keeps products safe and lowers shipping costs. PET can be recycled easily and can have printed designs for brands. PET films stop water and smells, so food and drinks stay fresh. PET fibers are strong and do not shrink. They pull sweat away, so they are good for clothes and special fabrics. PET can be recycled into new fibers. This helps the planet and cuts down on trash.

  PET is very clear and does not break easily. This makes it a good choice instead of glass for many things.

PET Disadvantages

• Recycling PET can cost a lot and use much energy. Some ways to recycle PET are not used everywhere yet. Studies sometimes forget about what happens to PET at the end of its life. This makes it hard to know how it affects the planet. Money issues and market changes can make PET recycling harder. In building and other jobs, PET can be hard to use in big amounts and may cost more.

Material Selection

Decision Factors

Picking the best plastic for a project is important. Engineers and designers look at many things. They check how strong and tough the plastic must be. They also look at how it handles heat and chemicals. Rules and safety standards matter too. For example, car parts need to handle hits and heat. Electrical connectors must insulate well and stay stable.

• Mechanical needs: Strength, stiffness, and toughness help pick the right plastic.

• Thermal properties: The plastic must handle high heat if needed.

• Chemical resistance: Some plastics do better with acids or oils.

• Regulatory compliance: Food and electronics need plastics that meet safety rules.

• Cost and availability: Some plastics cost more or are hard to find.

• Processing requirements: The plastic should be easy to shape and not warp.

Tip: Make sure the plastic fits what the job needs. Good balance of strength, cost, and how easy it is to make gives better results.

Application Guidance

Manufacturers use a checklist to help pick plastics for each job. The table below shows what matters most:

Designers think about where the plastic will be used. They check the temperature, humidity, and sunlight. Sometimes they pick stronger grades for more strength or heat resistance. How the plastic is shaped matters too. It should flow well and stay stable. The price of raw materials can change, so cost matters. Both plastics come from oil, so prices can go up or down.

Note: For hot or harsh places, pick plastics that resist heat and chemicals. For packaging, choose plastics that are cheap, clear, and easy to recycle.

PBT and PET plastics are different because of their molecular structure. This structure affects how strong, tough, and heat-resistant they are. PBT has flexible butylene groups. These help it crystallize fast and make it tough. That is why PBT works well in cars and electrical parts. PET is stiffer and keeps its shape better. This makes PET good for packaging and electronics. Engineers must think about many things when picking a material. They should look at how it is made and if it meets rules. Some people only think about price or forget if it fits the process. It is important to check everything. This helps make sure the plastic works for both technical and real-life needs.

FAQ

What makes PBT better for automotive parts?

PBT stands up to chemicals and heat. Engineers pick PBT for car connectors and sensor covers. The material stays in shape when stressed. Car makers like PBT because it is quick to make and lasts long.

Can PET bottles be recycled easily?

Most cities recycle PET bottles. Recycling centers make new bottles or fibers from PET. This process saves energy and cuts down on trash. Recycling PET helps the environment.

Is PBT safe for electrical applications?

PBT stops electricity from passing through. Makers use PBT in switches and connectors. The plastic does not break down from heat. PBT helps keep electrical systems safe.

How do PET and PBT handle high temperatures?

PET works at higher temperatures than PBT. Both plastics do well in many places.
